Map Range Slider

Intro

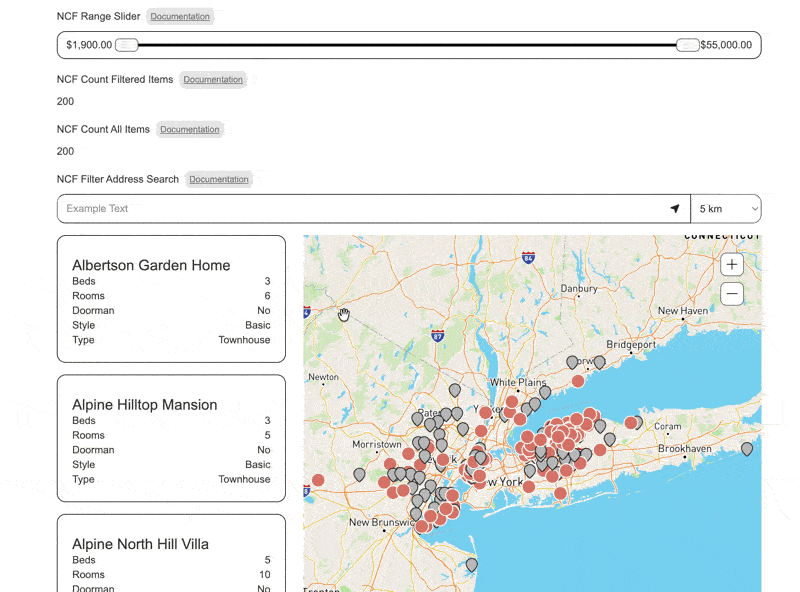

The range slider lets users filter map items within a specific range of values, like properties priced between $1,000 and $2,000, or any other numerical range you define.

Range Slider Setup

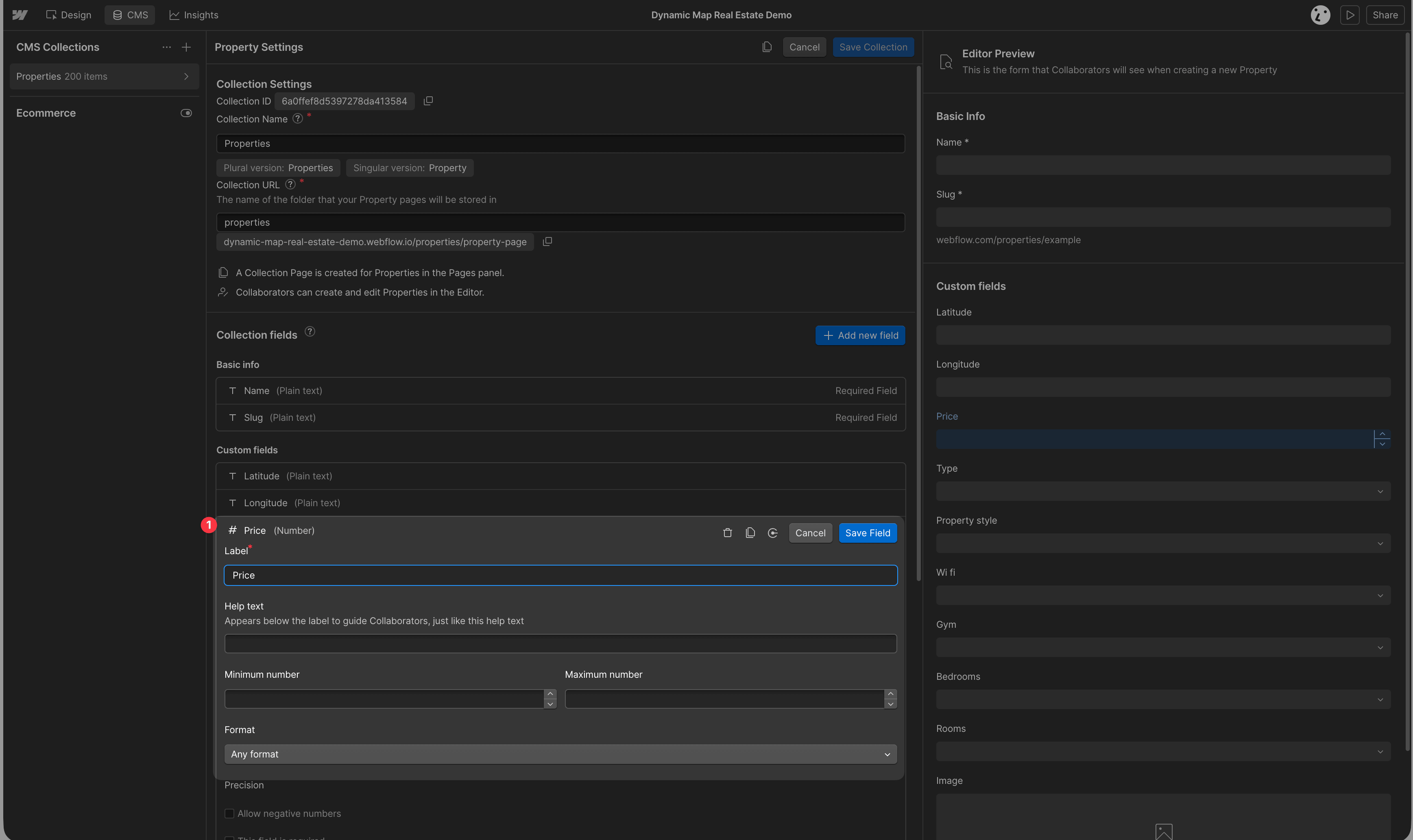

Create number field for your map item collection list in Webflow

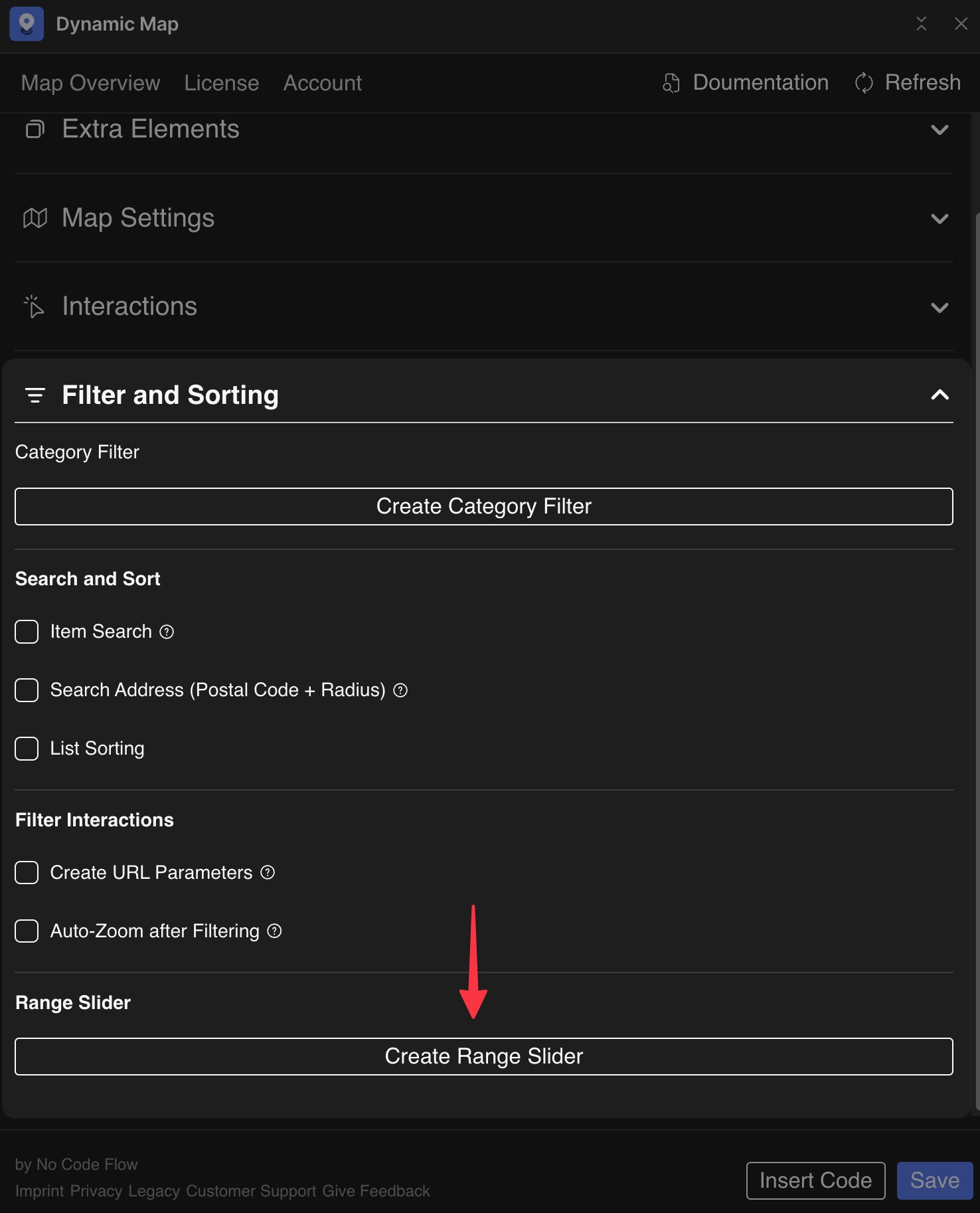

Create in Dynamic Map App

1. Navigate to Filter and Sorting
2. Click Create Range Slider

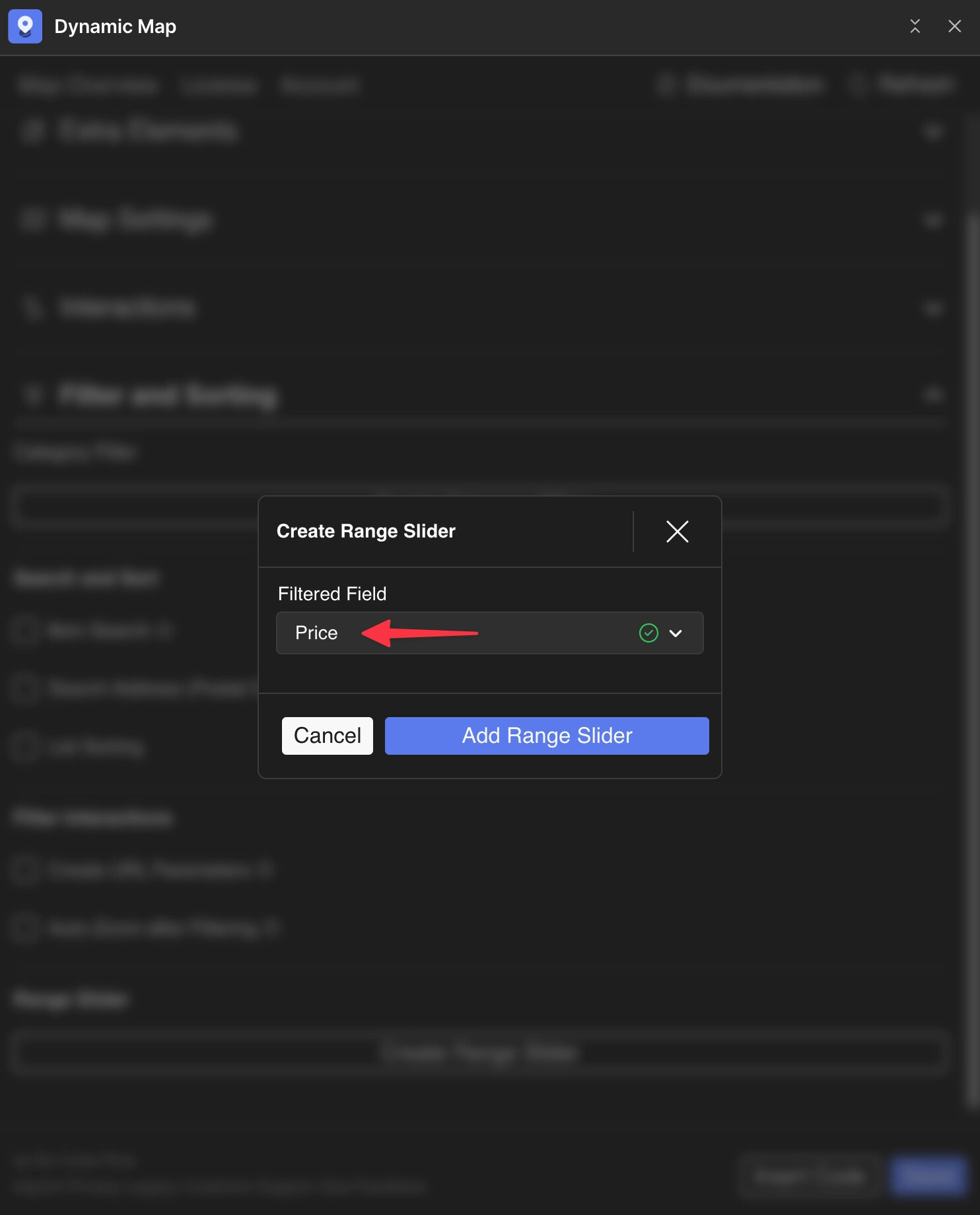

Configure Range Slider

Set desired number field that should be searched.

Prevent Live Updating while Sliding

You can set the range slider to apply on release only, which can enhance your filter’s user experience.

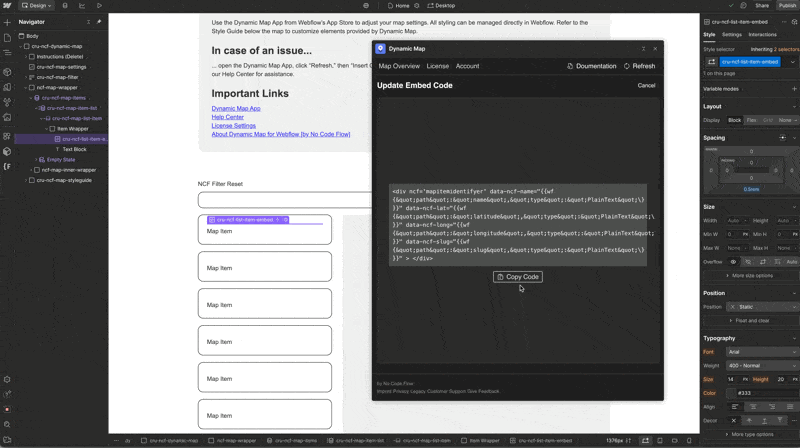

Update Code

Insert updated code into Dynamic Map’s Custom Code

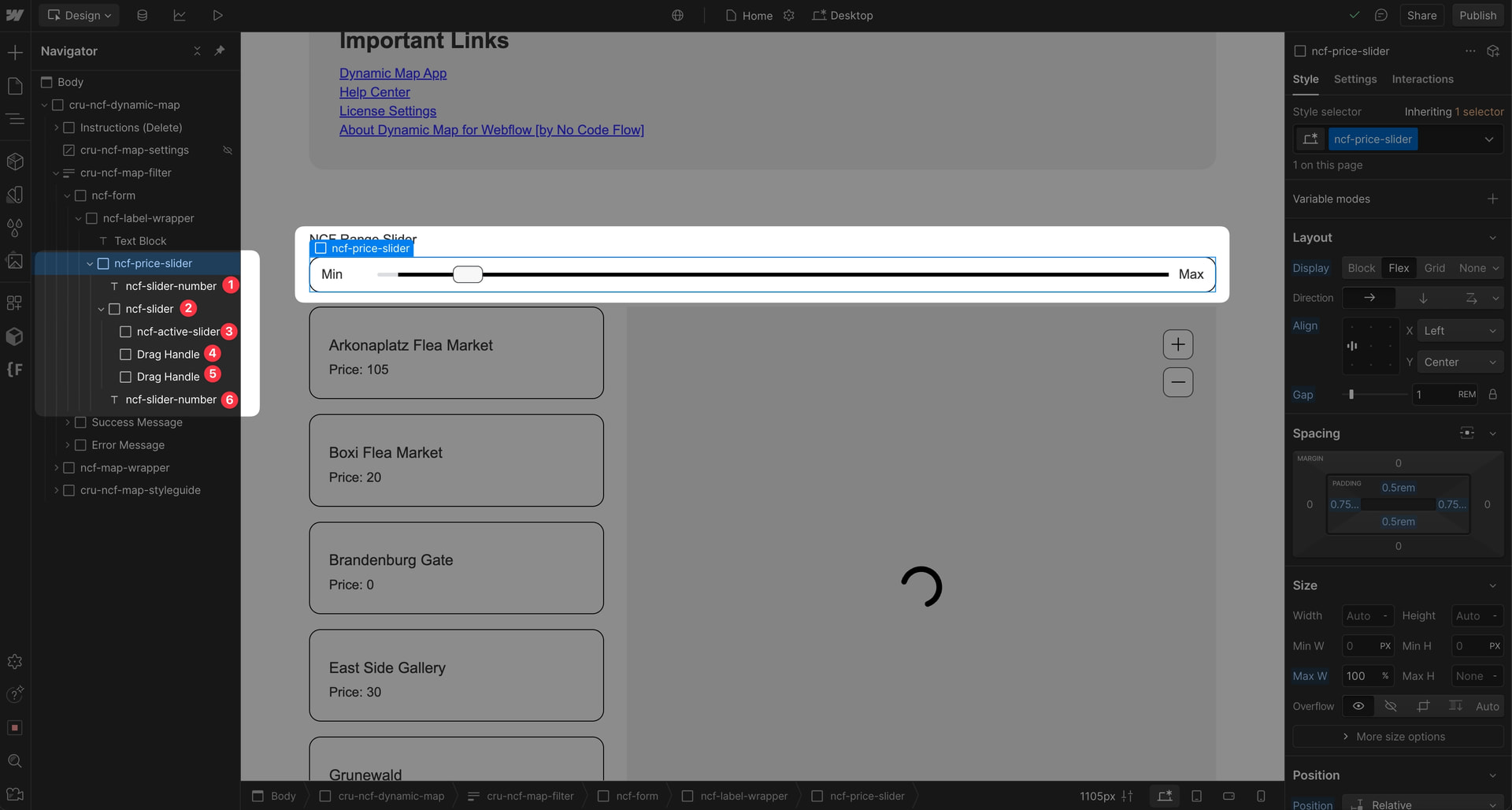

Locate in Designer and style

Locate the range slider and its different elements in Webflow’s designer. The ncf-price-slider is placed inside the filter wrapper div cru-ncf-map-filter

Style the range slider and its individual elements:

1. ncf-range-slider — the outer wrapper of the entire range slider component
2. ncf-slider-wrapper — the container holding the track and handles
3. ncf-slider-bar — the full background track of the slider
4. ncf-slider-bar-active — the highlighted portion of the track between the two handles
5. ncf-drag-handle — the draggable handle the user grabs to set min and max values
6. ncf-range-label (optional) — the label displaying the current min or max value. Can be deleted without affecting the slider’s functionality.
7. ncf-range-label-tick (optional) — the tick mark beneath the label. Can be deleted without affecting the slider’s functionality.

‍

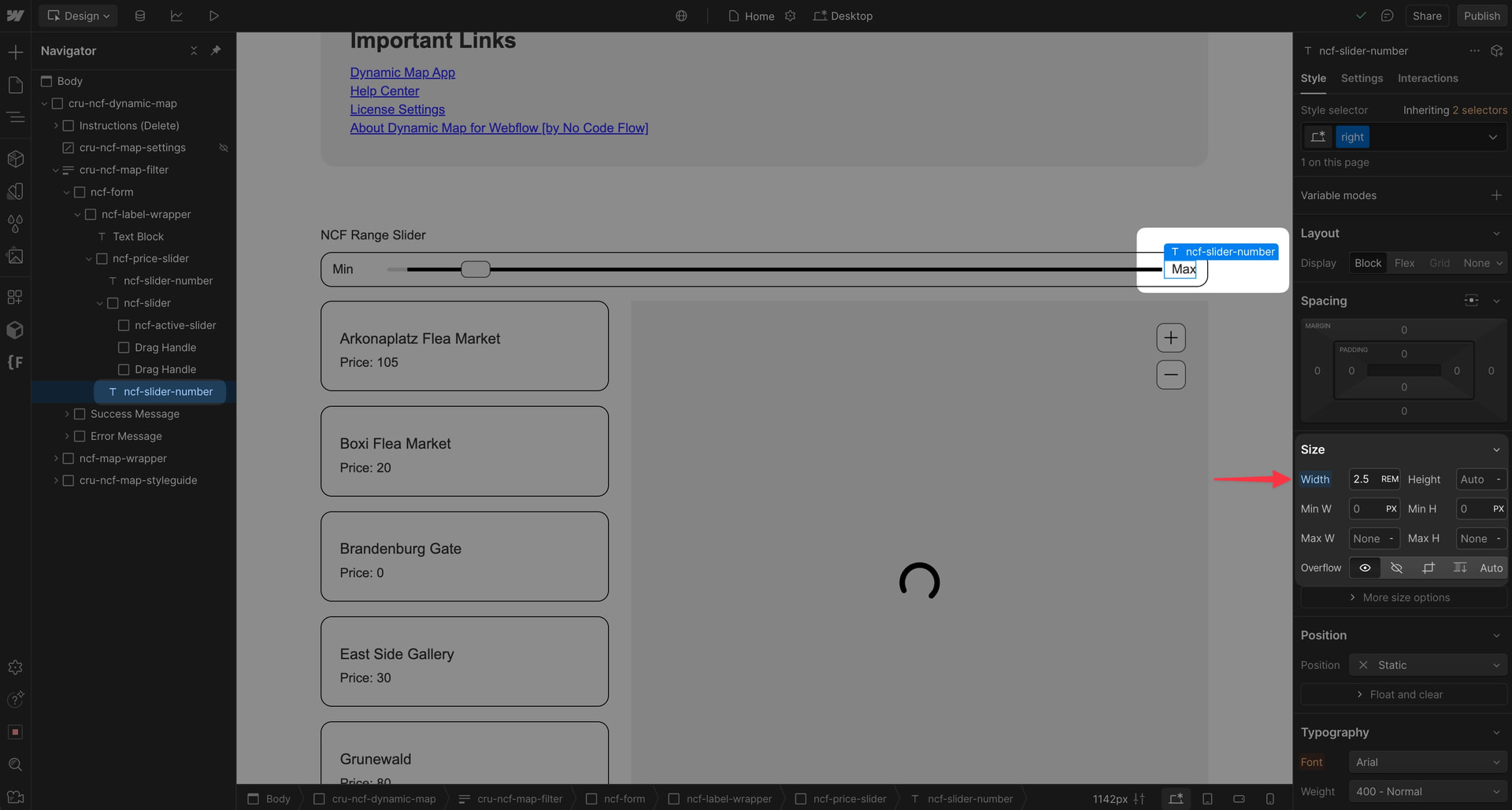

Range Slider Styling

Add a width to your slider numbers to make sure the range slider looks smooth always.

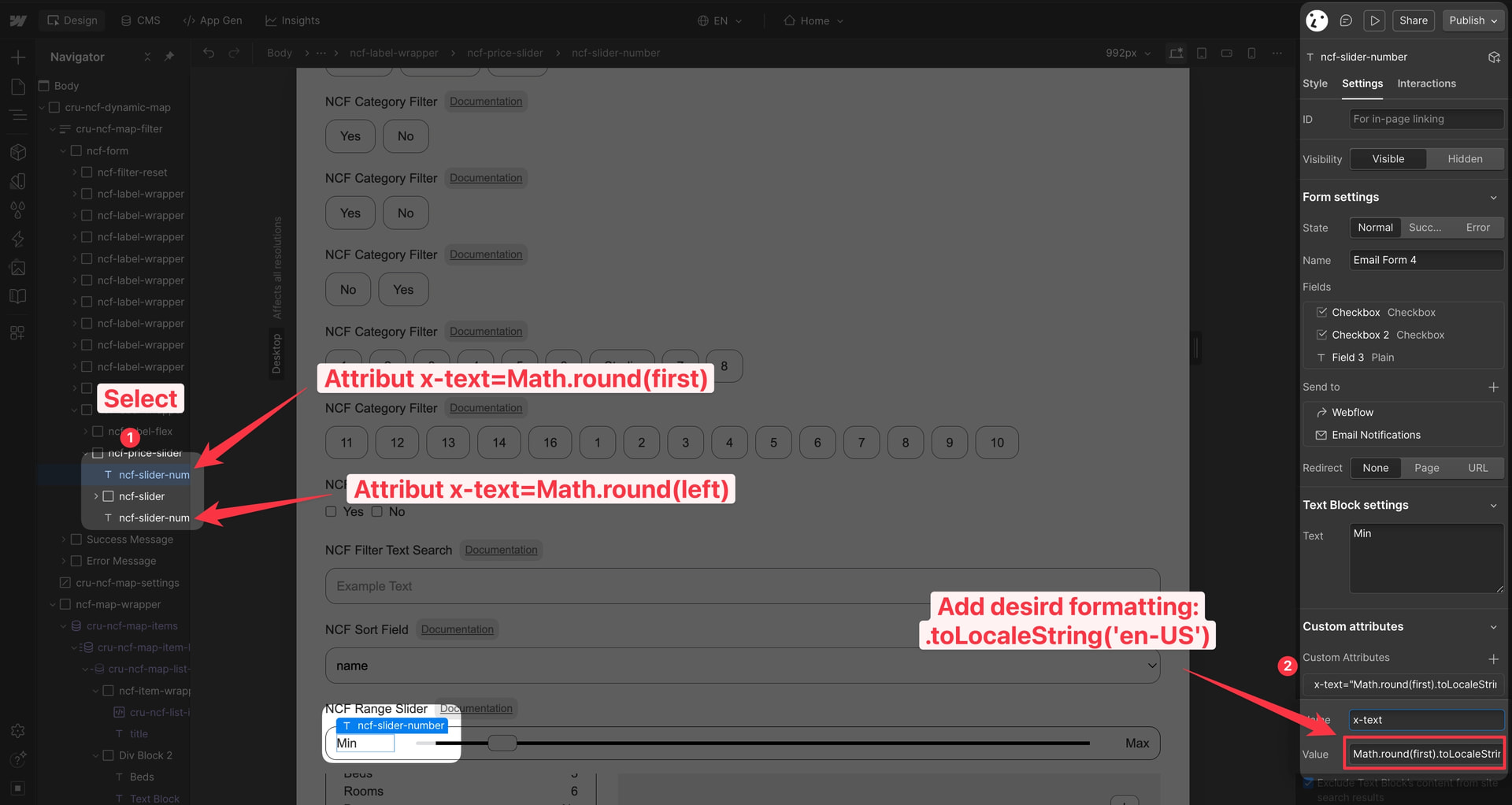

Add number formating to Range Slider

By default, number is displayed without any formatting. You can simply change the formatting by adding some text with the javascript “Number toLocaleString” method:

Append to:

Math.round(first)

Math.round(second)

Default formatting examples:

If you want simple US formatting use

.toLocaleString('en-US')

Left Min Text ⇒ Math.round(first).toLocaleString('en-US')

Right Min Text ⇒ Math.round(second).toLocaleString('en-US')

If you want US + dollar formatting just use:

.toLocaleString('en-US', { style: 'currency', currency: 'USD' })

Left Min Text ⇒ Math.round(first).toLocaleString('en-US', { style: 'currency', currency: 'USD' })

Right Min Text ⇒ Math.round(second).toLocaleString('en-US', { style: 'currency', currency: 'USD' })

If you want german + euro formatting just use:

.toLocaleString('de-DE', { style: 'currency', currency: 'EUR' })

Left Min Text ⇒ Math.round(first).toLocaleString('de-DE', { style: 'currency', currency: 'EUR' })

Right Min Text ⇒ Math.round(second).toLocaleString('de-DE', { style: 'currency', currency: 'EUR' })

Overview Locale Formatting
